It is a membrane switch with a smooth, flat interface and no tactile dome or mechanical snap feedback.
StikTec custom interface assemblies
Flat / Non-Tactile Membrane Switches for Factories
StikTec manufactures Flat / Non-Tactile Membrane Switches for OEM equipment that needs a low-profile, smooth, sealed control surface without mechanical click feedback. Each switch can be customized around the graphic overlay, circuit design, key map, display areas, flexible tail, connector, adhesive, and enclosure fit. StikTec works with suppliers, manufacturers, and companies on application-specific production requirements.
- Flat control surfaces without tactile dome feedback
- Custom graphic overlays, key zones, windows, and indicators
- PET, PC, and application-matched material options
- OEM circuit, tail, connector, and enclosure-fit support
Product specifications
Specify the complete switch assembly.

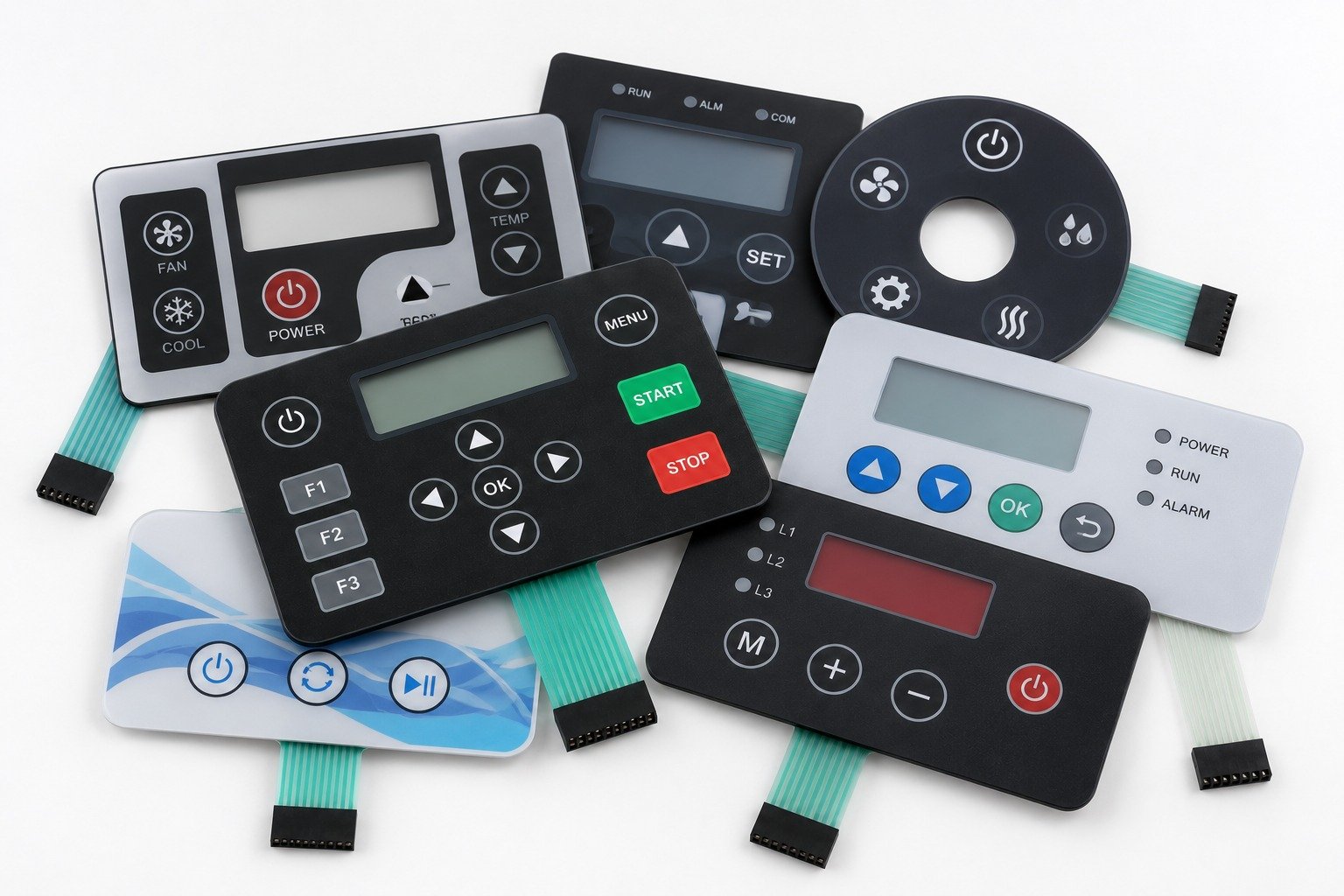

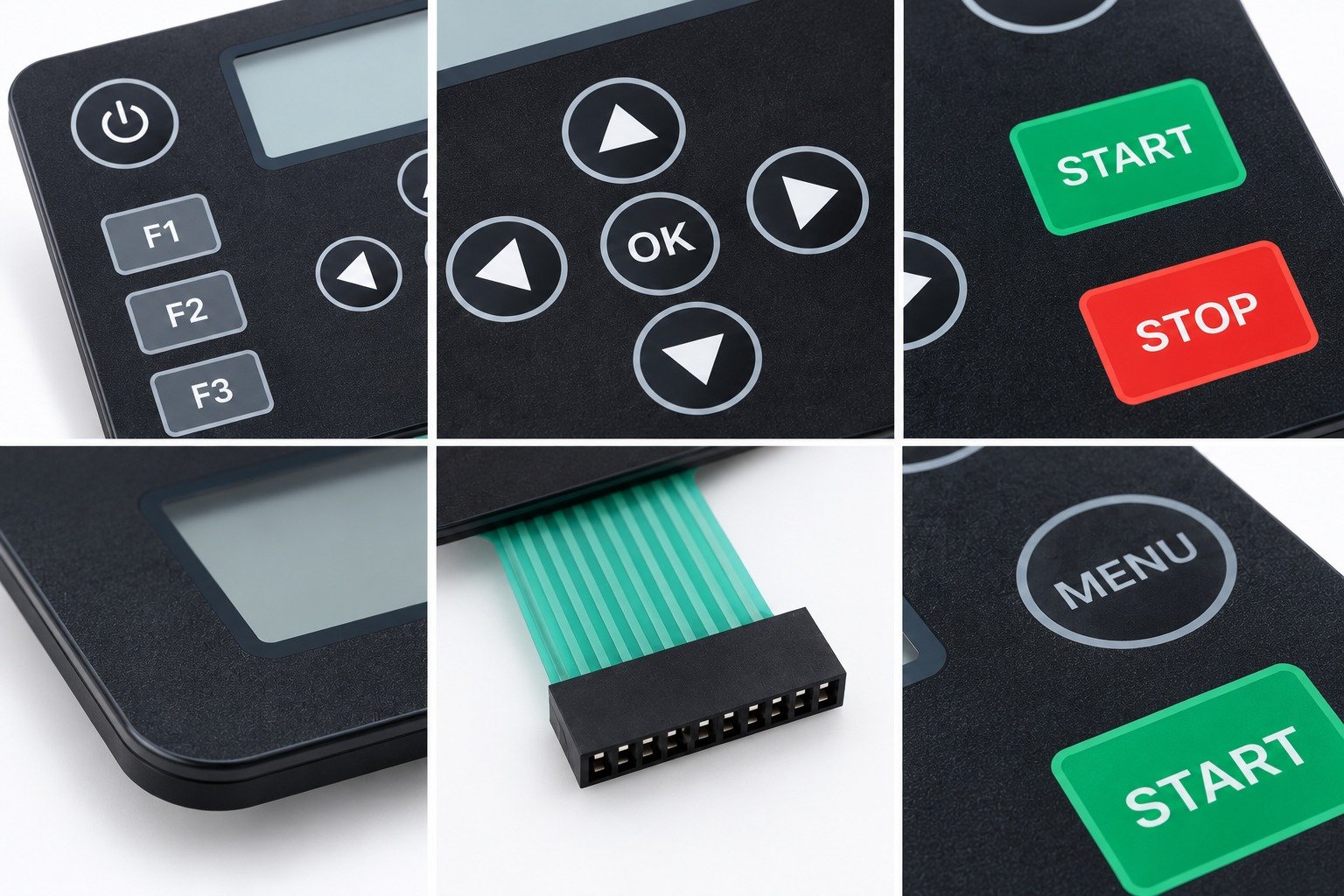

Flat membrane switches and non-tactile membrane switches use smooth key areas without metal domes or snap-action feedback. Their graphic overlay can carry symbols, key legends, brand graphics, instructions, warning information, color zones, clear windows, tinted windows, display cut-outs, and LED viewing areas.
- Overlay: PET, PC, PVC, and application-matched films with matte, glossy, textured, anti-glare, selective texture, or protective finishes.
- Circuit: Printed conductive traces, upper and lower circuit layers, contact areas, and project-defined routing.
- Spacer: A die-cut layer that defines switch contact regions between circuit layers.
- Tail and connector: Flexible tail length, exit direction, pin configuration, connector interface, and assembly routing.
- Assembly: Pressure-sensitive adhesive, mounting holes, cut-outs, shielding layers, and custom panel shapes where required.
Final specifications should be confirmed against the enclosure drawing, key map, electrical requirements, display layout, tail routing, connector details, and assembly process.
Common sourcing questions
Flat membrane switch answers.
Pressing a flat key zone closes circuit contact layers through a spacer opening and sends a control signal.
Yes. Clear, tinted, printed, indicator, LED, and display window areas can be reviewed for the device interface.
Yes. Tail exit, pin configuration, routing, and connection requirements can be reviewed from the drawing.
Sourcing risk support
Review more than front-panel artwork.
StikTec helps buyers reduce sourcing risk by reviewing the complete interface assembly. Non-tactile keypads need clear legends, contrast, key separation, indicator feedback, or firmware feedback because a physical click is not present.
- Confirm key locations, functions, icons, spacing, visual boundaries, and user interaction.
- Review PET or PC overlay, texture, windows, graphics, protective finish, and adhesive.
- Confirm circuit layout, contact functions, tail length, pinout, routing, and connector interface.
- Check display windows, LED zones, tint, alignment, panel outline, holes, cut-outs, and enclosure clearance.
Send your drawing, key map, artwork, enclosure photo, connector information, and reference sample for a more accurate engineering review.
OEM and ODM services
Custom interfaces for equipment programs.
StikTec supports OEM and ODM Flat / Non-Tactile Membrane Switch projects for equipment manufacturers, appliance brands, electronics companies, instrument makers, and industrial-control suppliers.
- Custom panel dimensions, shapes, holes, cut-outs, mounting features, key zones, icons, and branding.
- PET, PC, PVC, matte, gloss, texture, anti-glare, clear, tinted, dead-front, display, and indicator options.
- Printed circuit layers, tail planning, pinout, connectors, LED areas, and adhesive-backed enclosure assembly.
- Approved repeat-order specifications for stable OEM programs.
Custom process
Move from drawing to assembly.
- Submit requirements: Share dimensions, key map, artwork, functions, enclosure drawing, tail direction, connector, and quantity.
- Review construction: Confirm overlay, flat key zones, circuit layers, spacer, windows, adhesive, and mounting.
- Confirm artwork and circuit: Review graphics, symbols, text, colors, display areas, LED zones, pinout, and routing.
- Approve sample direction: Confirm fit, appearance, key-zone layout, connector interface, and assembly details.

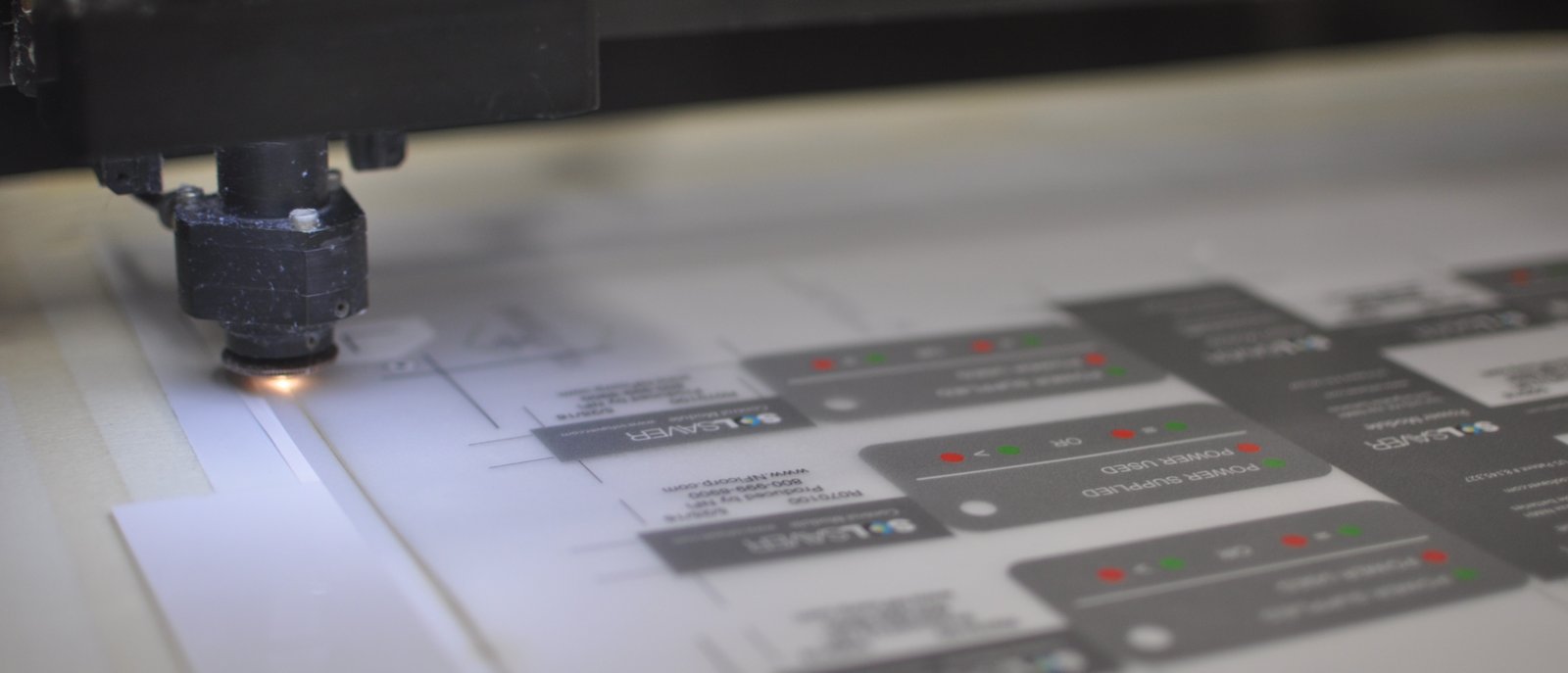

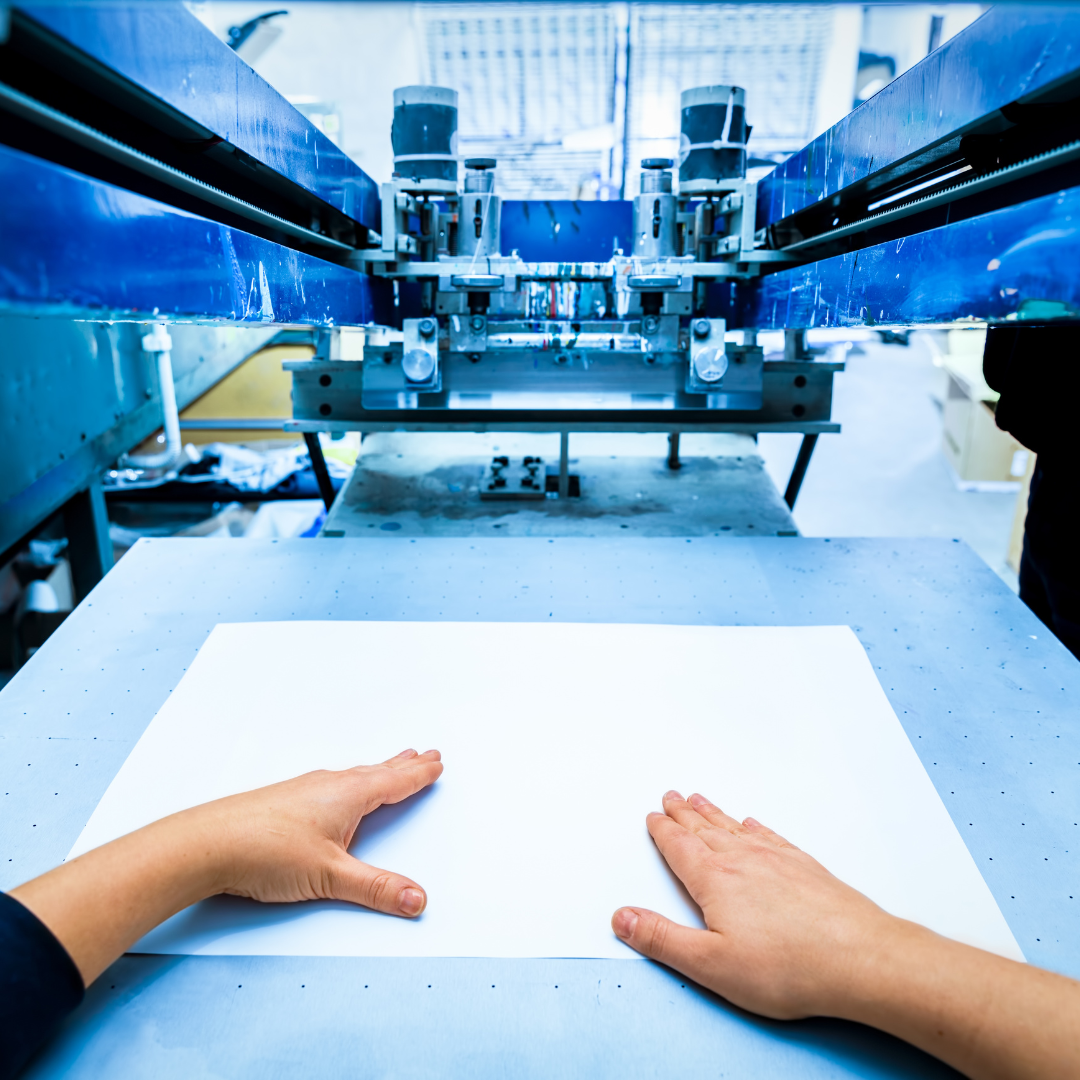

- Produce assemblies: Print, form layers, assemble circuits, laminate, die-cut, inspect, and package.
- Record repeat details: Retain approved drawings, stack construction, tail details, and packing requirements.
Quality control
Check against approved requirements.
Quality checks help confirm that Flat / Non-Tactile Membrane Switches match the approved project scope before shipment.
- Artwork, logos, symbols, legends, colors, warning content, panel size, outline, holes, cut-outs, and window positions.
- Flat key-zone placement, visual separation, circuit continuity or functional checks when included in the approved scope.
- Tail length, exit direction, pin configuration, connector interface, display-window, indicator-zone, and LED-area alignment.
- Surface finish, texture, protective layer, adhesive application, quantity, packaging, and shipment protection.
If a defined test plan, documentation, first-article approval, customer inspection criteria, or end-use validation is needed, provide it during enquiry for early review.
Applications
Use smooth controls across products.
Industrial Equipment
Flat control panels for machinery, automation systems, operator interfaces, and enclosures.
Laboratory Instruments
Smooth interfaces for analyzers, testing devices, measurement equipment, and controlled workspaces.
Home Appliances
Printed flat controls for kitchen equipment, cleaning products, climate devices, and electronics.
Medical Equipment
Custom panels with clear legends, display windows, and controlled artwork.
Consumer Electronics
Low-profile keypads and control surfaces for compact products and accessories.
Remote Controls & Keypads
Flat membrane keypad structures with defined printed functions and minimal profile.
Product definition
How flat non-tactile switches work.
Flat / Non-Tactile Membrane Switches are low-profile electrical switch assemblies with a smooth front surface. They do not use tactile domes or mechanical snap layers to create click feedback.

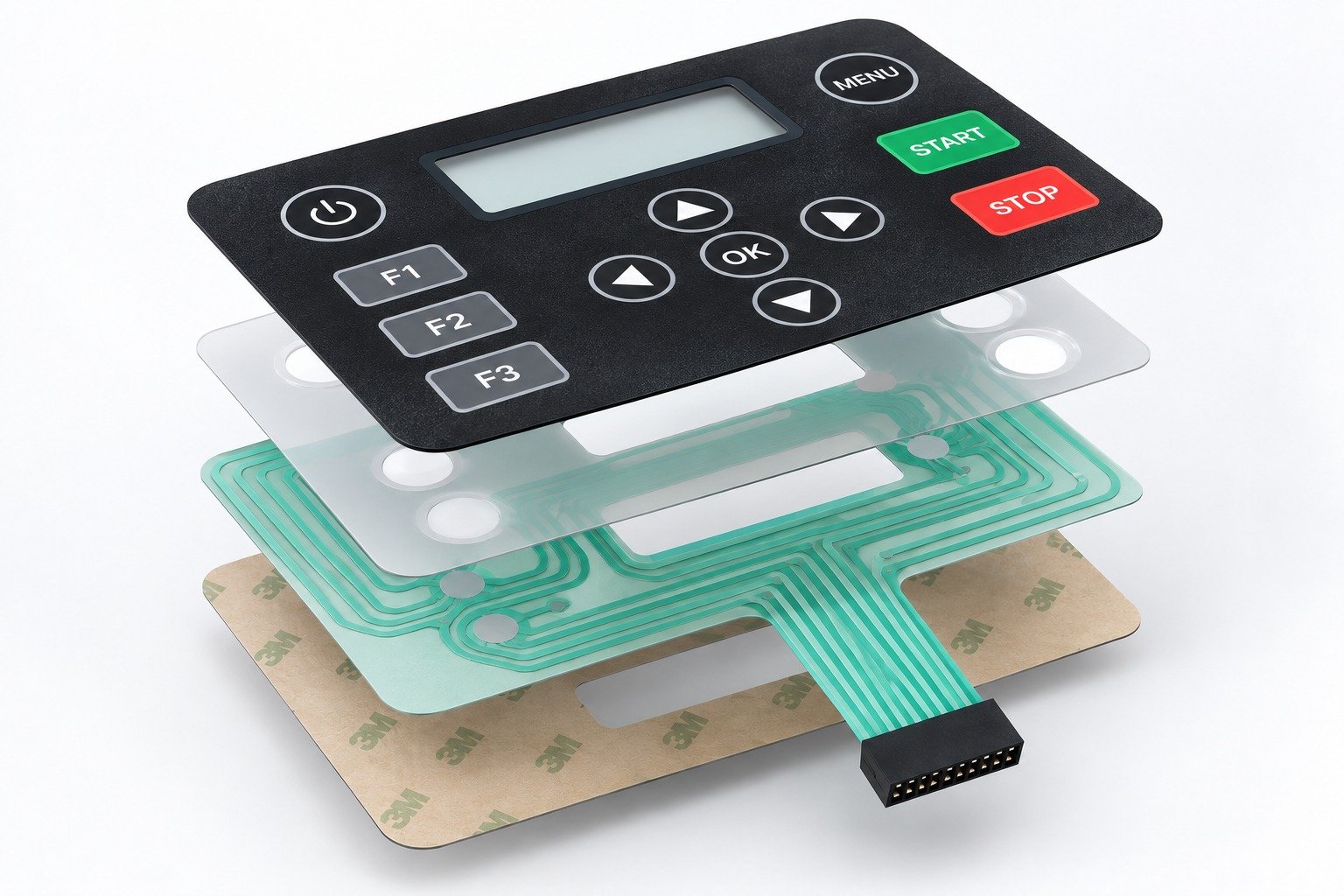

When a user presses a defined flat key area, flexible circuit layers make contact through a spacer opening and complete an electrical path. A typical construction includes a graphic overlay, die-cut spacer, flexible circuit layers with conductive traces, rear adhesive, flexible tail, and connector.
Core layers
The overlay carries labels, symbols, graphics, instructions, and windows. The spacer separates contacts until pressed. Circuit layers carry contact zones. Rear adhesive bonds the switch to the enclosure.
Product comparison
Select the interface construction.
- Flat / Non-Tactile Membrane Switches: Low-profile, smooth, quiet control surfaces where mechanical click feedback is not required.
- Tactile Membrane Switches: Interfaces where users need physical key location and defined press feedback.
- Graphic Overlays: Non-switching front surfaces with branding, legends, windows, and protective functions.
- LED Backlit Membrane Switches: Control panels requiring illuminated keys, indicators, or low-light readability.
- Rigid Control Panels: Applications requiring a rigid front component, mechanical mounting, or another interface construction.
Procurement checklist
Confirm before requesting a quote.
- Panel outline, dimensions, holes, cut-outs, mounting points, and enclosure area.
- Key map, labels, icons, colors, user feedback, PET or PC overlay, texture, and windows.
- Display features, circuit functions, tail routing, pinout, connector, adhesive, and mounting process.
- Environment, artwork approvals, warning content, validation, sample, first article, and test requirements.
Brand partnership
Support for practical B2B projects.
StikTec works with B2B buyers who need Flat / Non-Tactile Membrane Switches aligned with real equipment, enclosure, electrical, and user-interface requirements. The focus is a practical assembly with clear operation, accurate fit, suitable connection, and repeat-order consistency.
- Review artwork, key map, circuit details, tail routing, windows, materials, and adhesives before production.
- Custom solutions for OEM, appliance, industrial, instrument, and electronics projects.
- Communication based on approved drawings, reference samples, enclosure details, and project requirements.
Frequently asked questions
More non-tactile switch answers.
A flat switch assembly without a tactile dome or mechanical click-feedback layer.
Yes. Clear, tinted, printed, indicator, and display-window areas can be reviewed.
PET, PC, PVC, and finishes can be reviewed around the enclosure, layout, windows, and use environment.
Send dimensions, artwork, key map, circuit or pinout details, tail direction, connector, enclosure details, and quantity.
Project inquiry
Discuss your switch project.
Tell StikTec about your Flat / Non-Tactile Membrane Switch project. Share your drawing, panel size, key map, artwork, circuit requirements, tail and connector details, enclosure information, and quantity for a more accurate recommendation.
